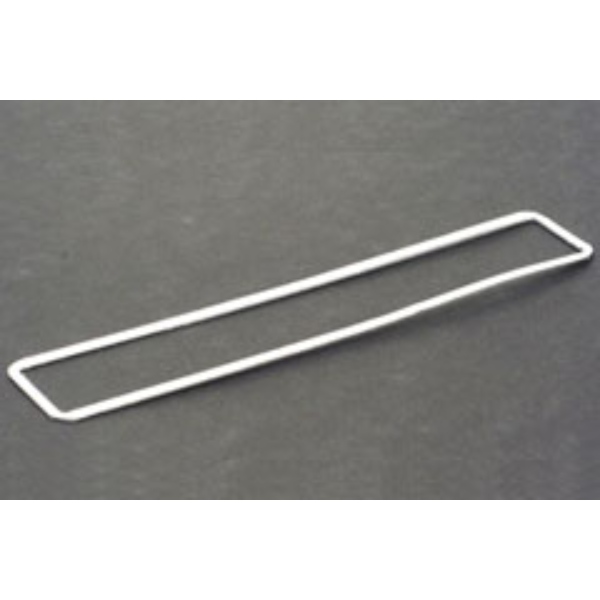

Mag Section Gasket for use with HP P4014, P4015 & P4515 Cartridges
The mag roller section of the HP P4014, P4015 and P4515 cartridge is designed differently from what remanufacturers are accustomed to seeing. It is comprised of two parts - a ôfloatingö upper and a stationary base section. OEM cartridges utilize ahot melt material to secure the two sections, allowing the top section to flex during printer operation.
If not correctly re-assembled the upper section can bow, resulting in toner leakage. Static ControlÆs mag section gasket with flexiblefoam member is designed to fit between the two sections in place of the OEM hot melt, reducing the risk of toner leakage and print defects.
For complete instructions refer to SSS 1078,HP P4515 Mag Section Gasket Installation Instructions .
Available in packs of 10.
If not correctly re-assembled the upper section can bow, resulting in toner leakage. Static ControlÆs mag section gasket with flexiblefoam member is designed to fit between the two sections in place of the OEM hot melt, reducing the risk of toner leakage and print defects.
For complete instructions refer to SSS 1078,
Available in packs of 10.
Login
Invalid email or password.
Information
Product Code
HP4515MSGASKET
GTIN:
Specifications
Product Type
Parts
Product Subtype
Parts
Product Dimension
283 x 111 x 34 mm
Product Weight
0.06 kg
OEM Cartridge
02-81300-001 for Troy MICR 4014/4015/4515 Printers
02-81301-001 for Troy MICR 4015/4515 Printers
CC364A for P4014, P4015, P4515
CC364X for P4015, P4515 - HY
CE390A (HP 90A) for M4555 MFP
CE390X (90X) for M4555 MFP
CF281A (HP 81A) for HP Enterprise M630 MFP
CF281X (HP 81X) for HP Enterprise M630 MFP
Printer Type
Monochrome Laser Printer
Printer Model
